Pure tube preamp in a 500-series module

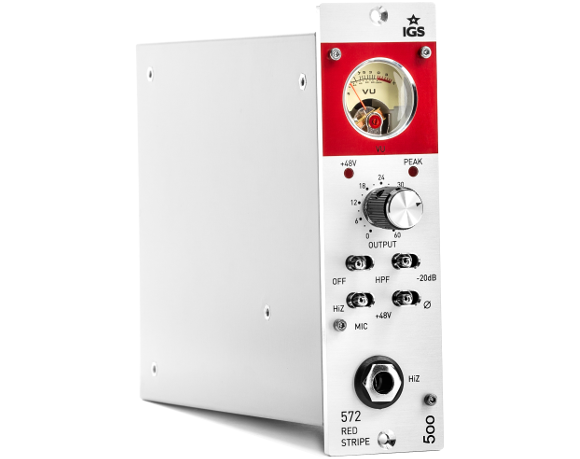

572 Red Stripe is a mic/instrument preamp designed in the 500-standard. The module is transformer balanced on input and output using Sowter and Edcor transformers. All controls on the front panel are stepped switches. Excellent for recording any sources, including microphones, line signals, instruments like guitars, or keyboards (Hi-Z input at the front of the unit).
Big sound footprint
This is an excellent preamplifier, that can be used with a variety of sources: line signals, guitar pickups (via Hi-Z input), dynamic, condenser and ribbon microphones. It always provides outstanding results. With one knob gain control (41-stepped) you can push it nicely, but still make sure that you don't overload the next stage of your signal chain. The second stage overloading gives some sweet harmonics vibe. Adds a lot of unique flavour. HiZ input is accessible from the front of unit. Handy!

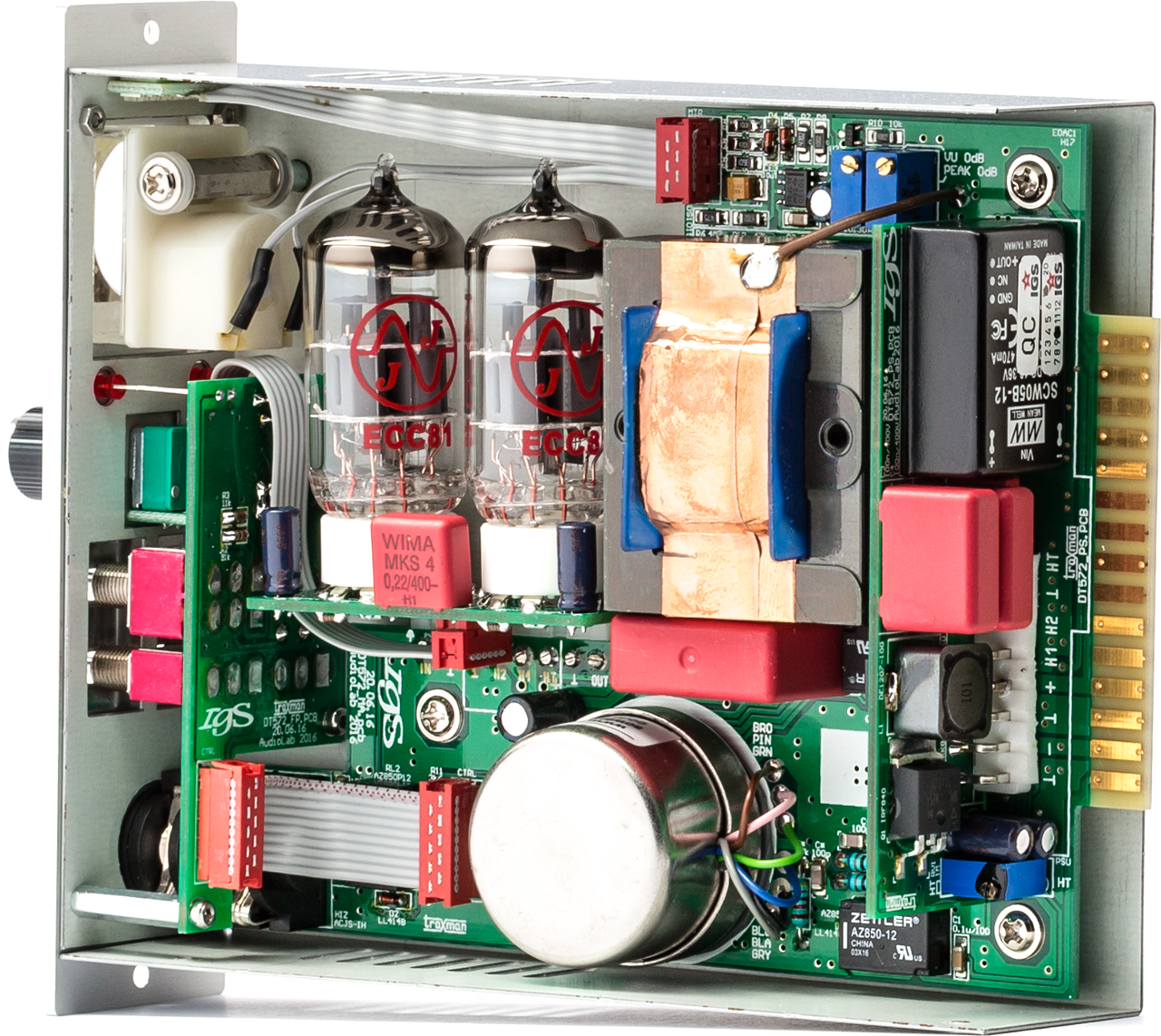

IGS 572 Red Stripe, single channel, pure tube mic preamp in a 500 module, two double-triodes (JJ ECC803S and JJ ECC81), UK made input and American output transformers, -20 dB interstage Pad, polarity control, +48V phantom power, low-cut filter, DI-Input 1/4" TS Jack 1MOhm, max. Input Level: +16 dBu, max. Output Level: +28 dBu, back-lighted analog VU-Meter, +48 and clip LED, Made in Europe.
Just perfect for your skills
| Basic features | |
|---|---|
| Number of slots | 1 |
| HPF | OFF, 50 Hz (6dB/oct) |
| Input & Output | |
|---|---|
| Input Pad | -20dB |
| Input Impedance (balanced) | >600 Ohm, Sowter transformer |
| Input Pad | -20dB, interstage |
| Phantom Power | Yes |
| Output Impedance (balanced) | 600 Ohm, Edcor USA transformer |
| Audio transformers | Sowter / Edcor |
| Levels | |
|---|---|
| Operating Level | +4dBu |
| Max input level | +16dBu |
| Max output level | +28dBu |
| Dynamic Range | 117dB |
| Noise Level | -100 dBA |
| Max. gain | 64dB |
| Bandwidth | |
|---|---|
| Frequency response | 20Hz - 20kHz, - 1 dB |
| Distortion (@ 20 Hz - 20 kHz) | |
|---|---|
| THD+N | max 0.5% |
| Power | |
|---|---|
| Voltage | Anode: 250VDC |
| Voltage | +/- 16V DC |
| Power consumption | 6.5W |
| Packing box | |
|---|---|
| Dimensions | 78x166x229mm |
| Shipping weight | 2kg |
| Others | |
|---|---|
| Used for | Any kind of one channel studio recordings |
| Tube set | ECC81, ECC81 |
Analog Cure
IGS Audio is now one the most desired studio equipment brands in Poland and it is continuously expanding internationally. The original IGS Audio products qualify as pretenders to no.1. All stuff manufactured by IGS Audio is accurate and excellent.
IGS Audio is all about happiness in success. IGS Audio offers 3 years warranty for all products (warranty does not cover tubes).
IGS Studio has been operational since 1997. The IGS Audio brand was created in 2003.
