Once when I was a little boy, I heard my uncle's equalizer which he built into his stereo. The sound was incredible. I still remember it to this day. Three potentiometers gave it a sound that I'd never heard before. I couldn't stop listening to the sound that his compact player made.

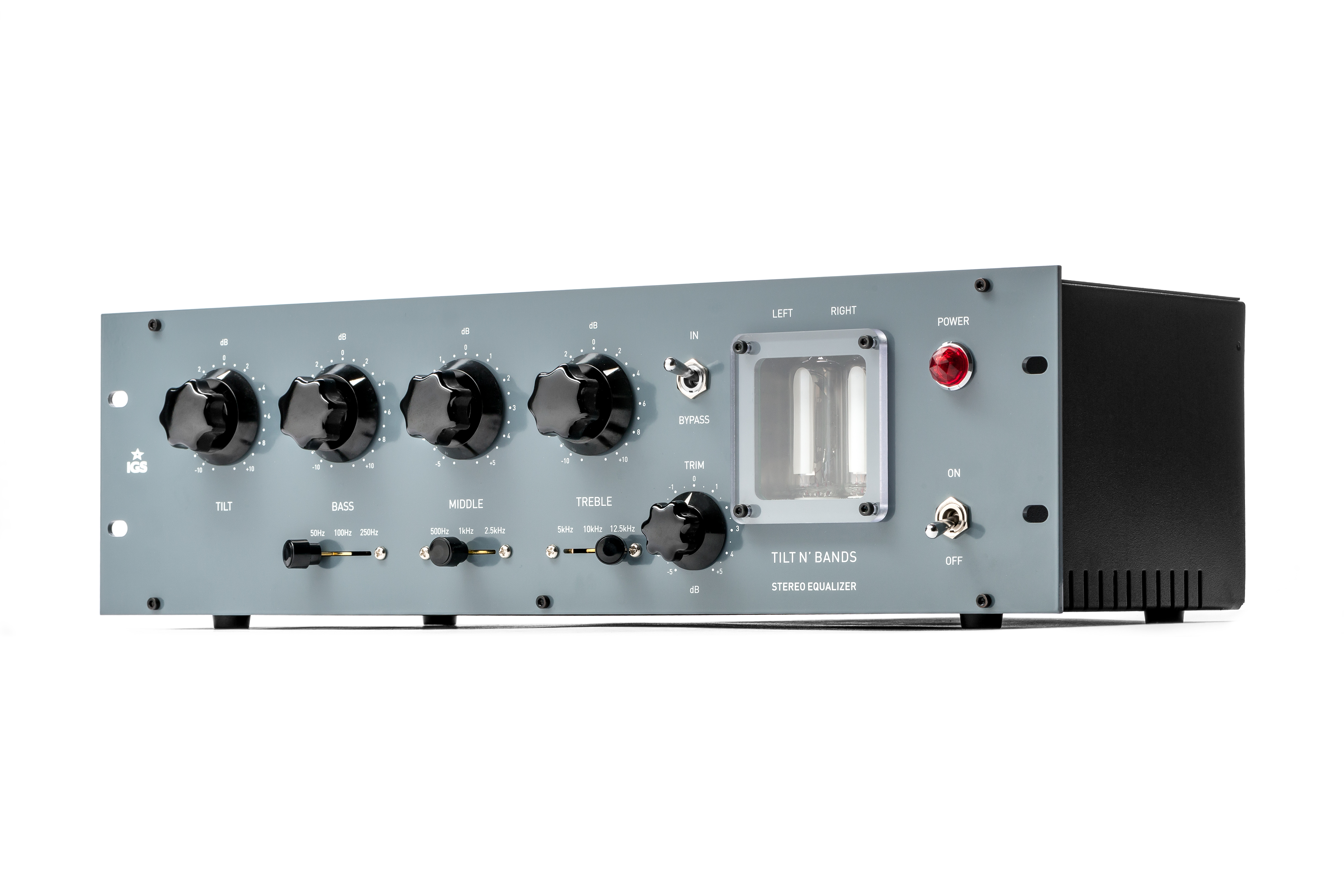

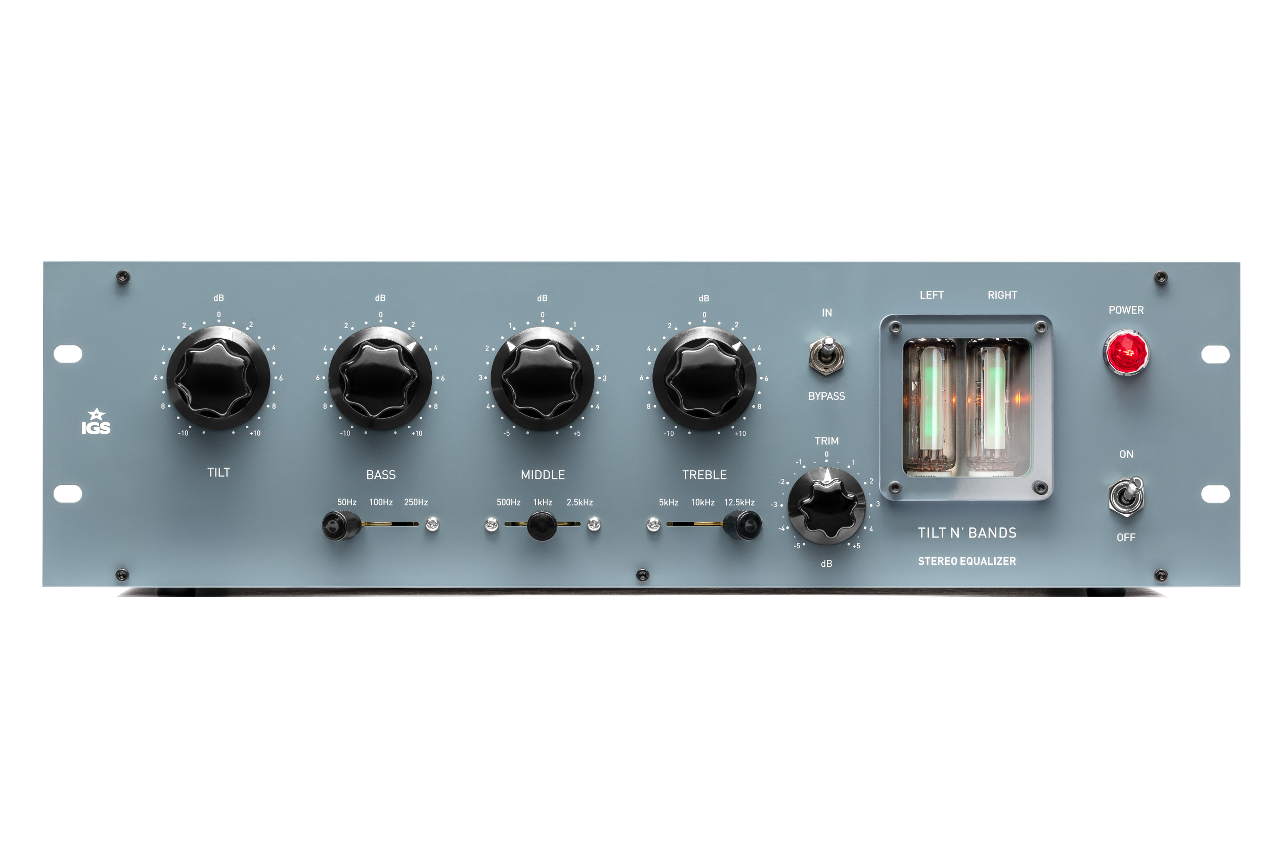

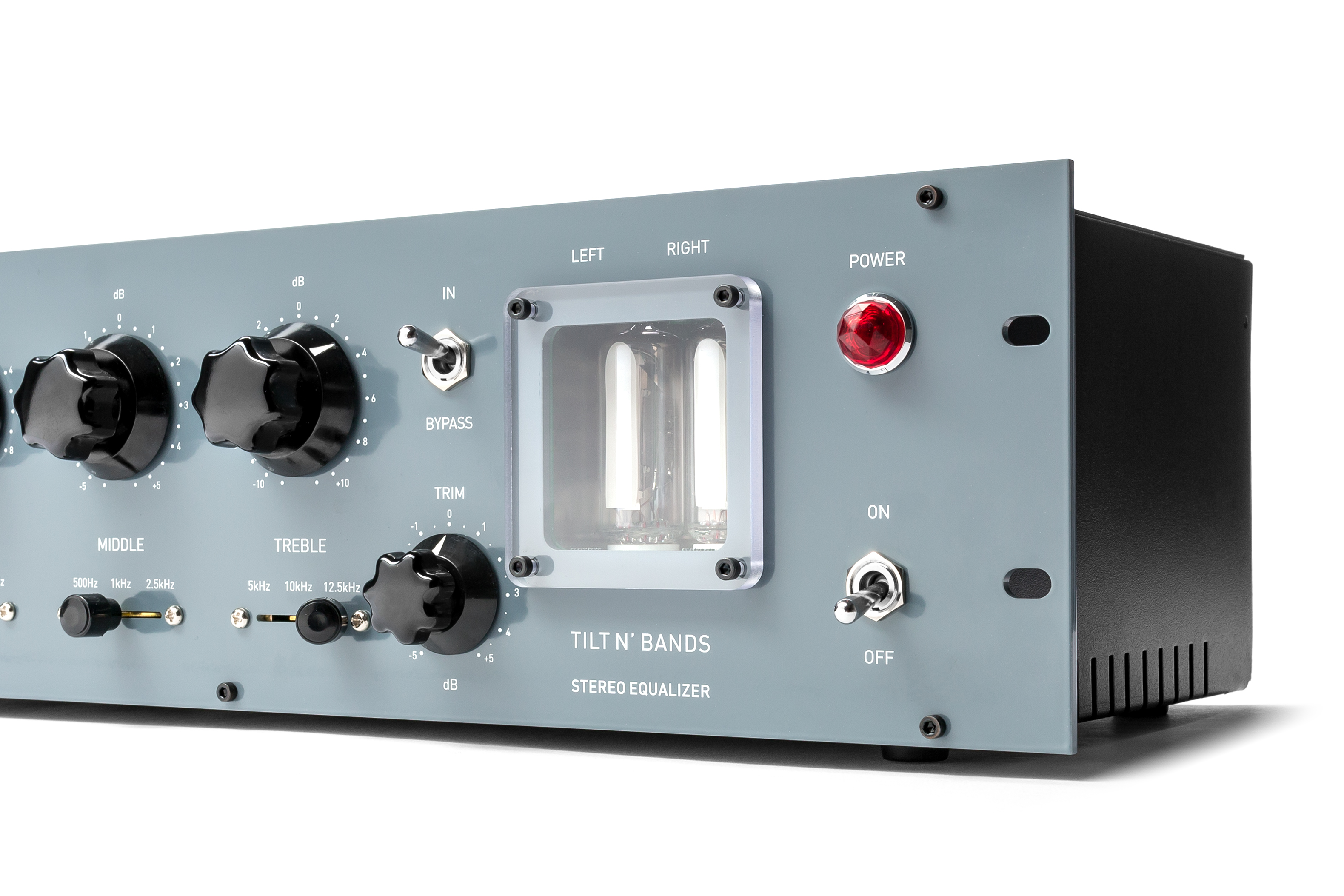

Full tube mastering equalizer
I asked my uncle for the diagram and he drew it with a pencil on a piece of paper. I quickly learned the schematic by heart and as an electronic engineer amateur, I have repeatedly built the hi-fi amplifiers using the schematic. The EQ sounded implausible each time.
After many years I decided to make a studio device based on my uncle's schematic. I improved the arrangement by adding a transformer balanced tube stage. The Tilt turned out to be a cool addition too. This vintage circuit is very useful in any mastering application. I hope, you will feel the vibe of my uncle's old radio equalizer.
I hope, you will feel the vibe of my uncle's old radio equalizer.
| Basic features | |
|---|---|
| Hard wire bypass | yes |
| Q factor | 0.5 to 5 |
| Input & Output | |
|---|---|
| Input Impedance (balanced) | 10k Ohm |
| Output Impedance (balanced) | 600 Ohm |
| Audio transformers | IGS Custom on input and output |
| Levels | |
|---|---|
| Operating Level | +4 dBu nominal |
| Max output level | @ 1.6% THD +37 dBv; +26dBv @ 20 Hz |
| Noise Level | -110dB |
| Bandwidth | |
|---|---|
| Frequency response | 20 Hz to 40 kHz, +/-0.3dB |
| Distortion (@ 20 Hz - 20 kHz) | |
|---|---|
| THD+N | 0.08% (1KHz @ +4 dBu) |
| Crosstalk | >70dB |
| Front Panel | |
|---|---|
| VU Meters | Magic eye |
| Power | |
|---|---|
| Voltage | 230/115 |
| Power consumption | 64W |
| Power supply | Linear, internal |
| Packing box | |
|---|---|
| Shipping weight | 11kg |
| Others | |
|---|---|
| Used for | Mastering, tracking |
| Tube set | 6x6N1P, 2x6E2 |
| Files |
|---|
| TnB_Hi_Boost_Cut.JPG |
| TnB_Mid_Boost_Cut.JPG |
| TnB_Bass_Boost_Cut.JPG |

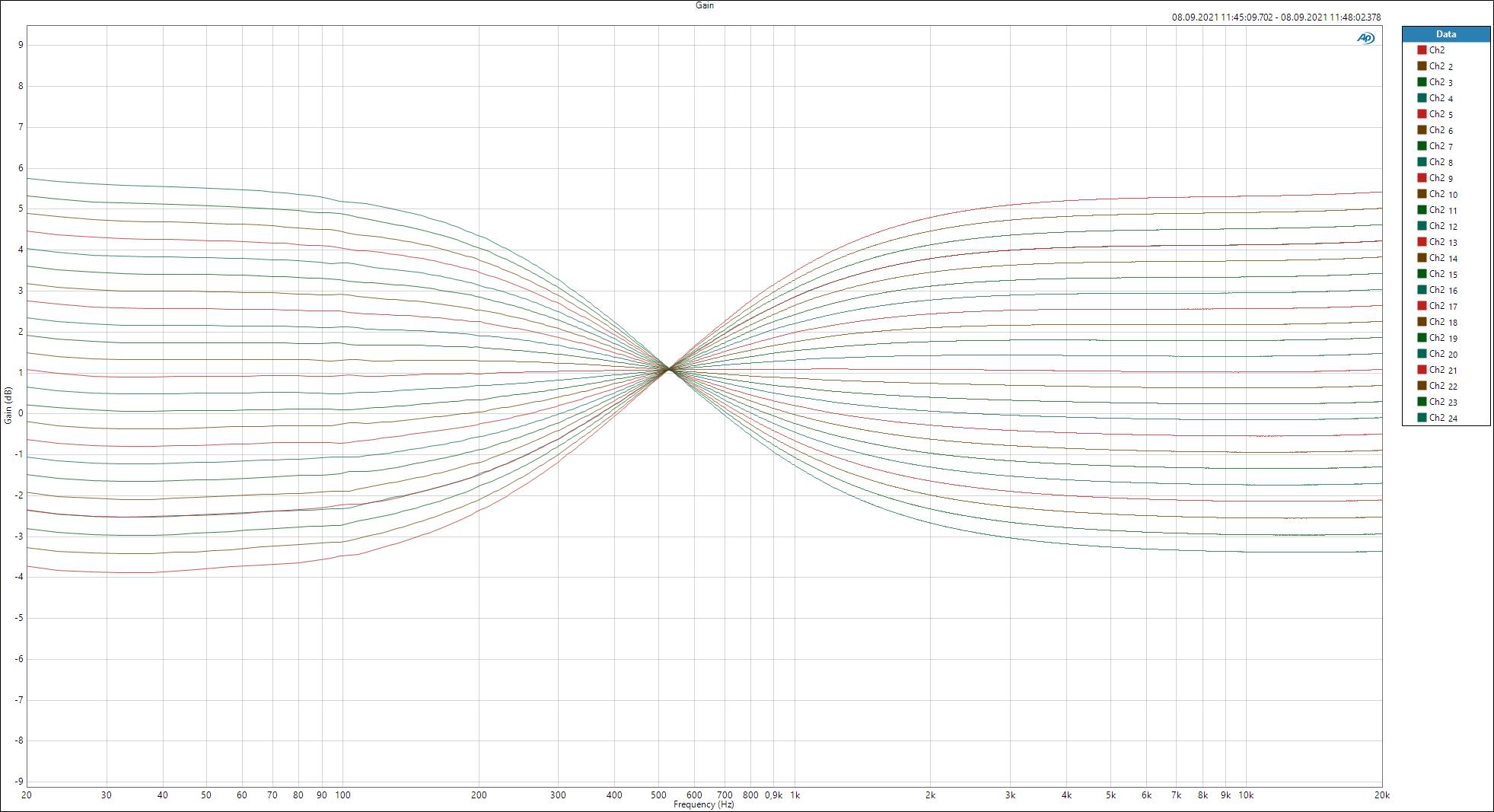

| TnB_Tilt.jpg |
