TUBECORE

The finest mastering compressor ever created.

The design.

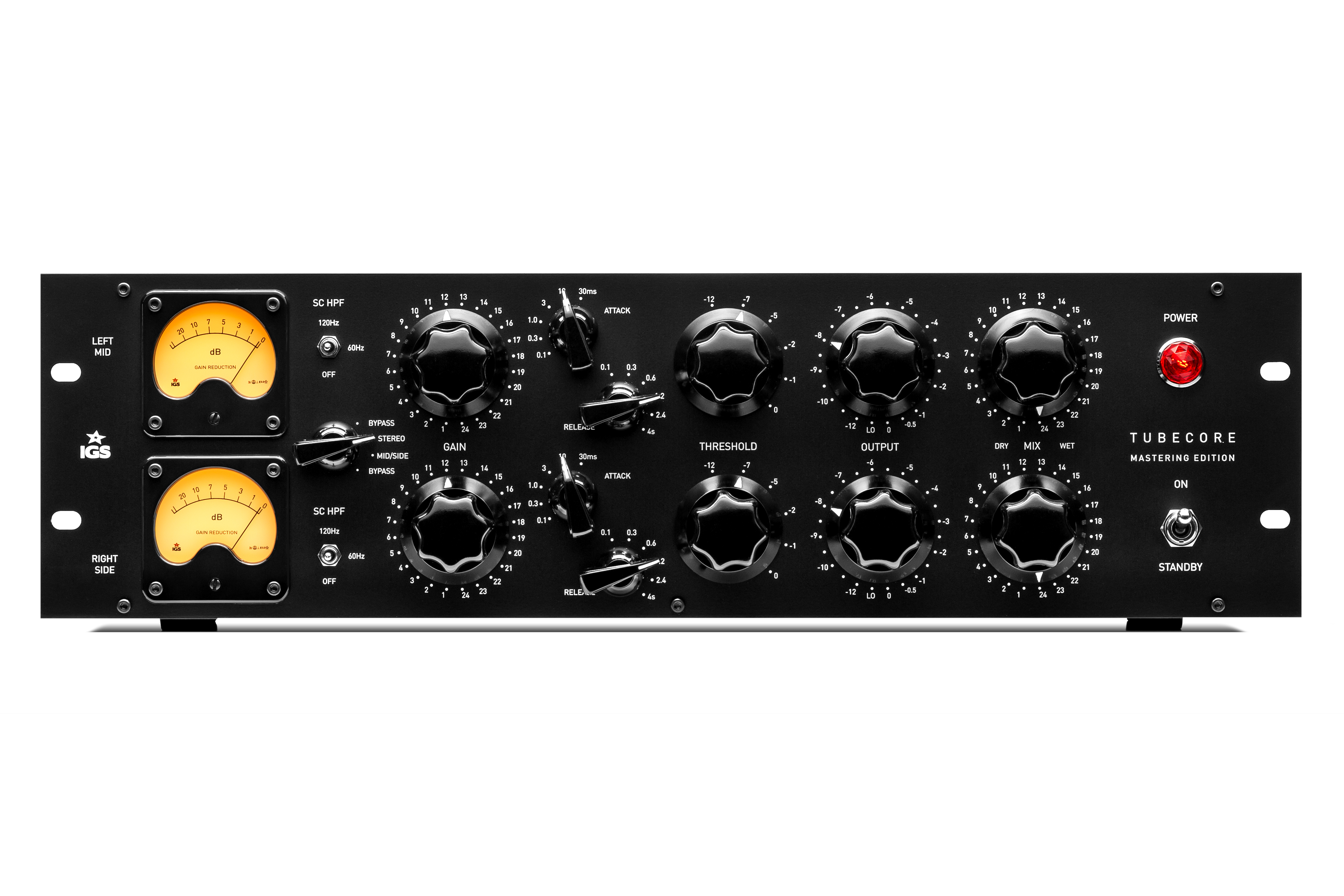

The TUBECORE is a fully symmetric transformer balanced stereo mastering compressor. The structure is based on the typical vari-mu solution. Apart from the classic INPUT, THRESHOLD and OUTPUT controls it introduces a switchable high pass filter in the sidechain, parallel compression (MIX knob), independent ATTACK and RELEASE switches, and user replaceable tubes accessible from the back of the unit.

The TUBECORE adds density and dimension to your mix in a magical way.

Comfort of use.

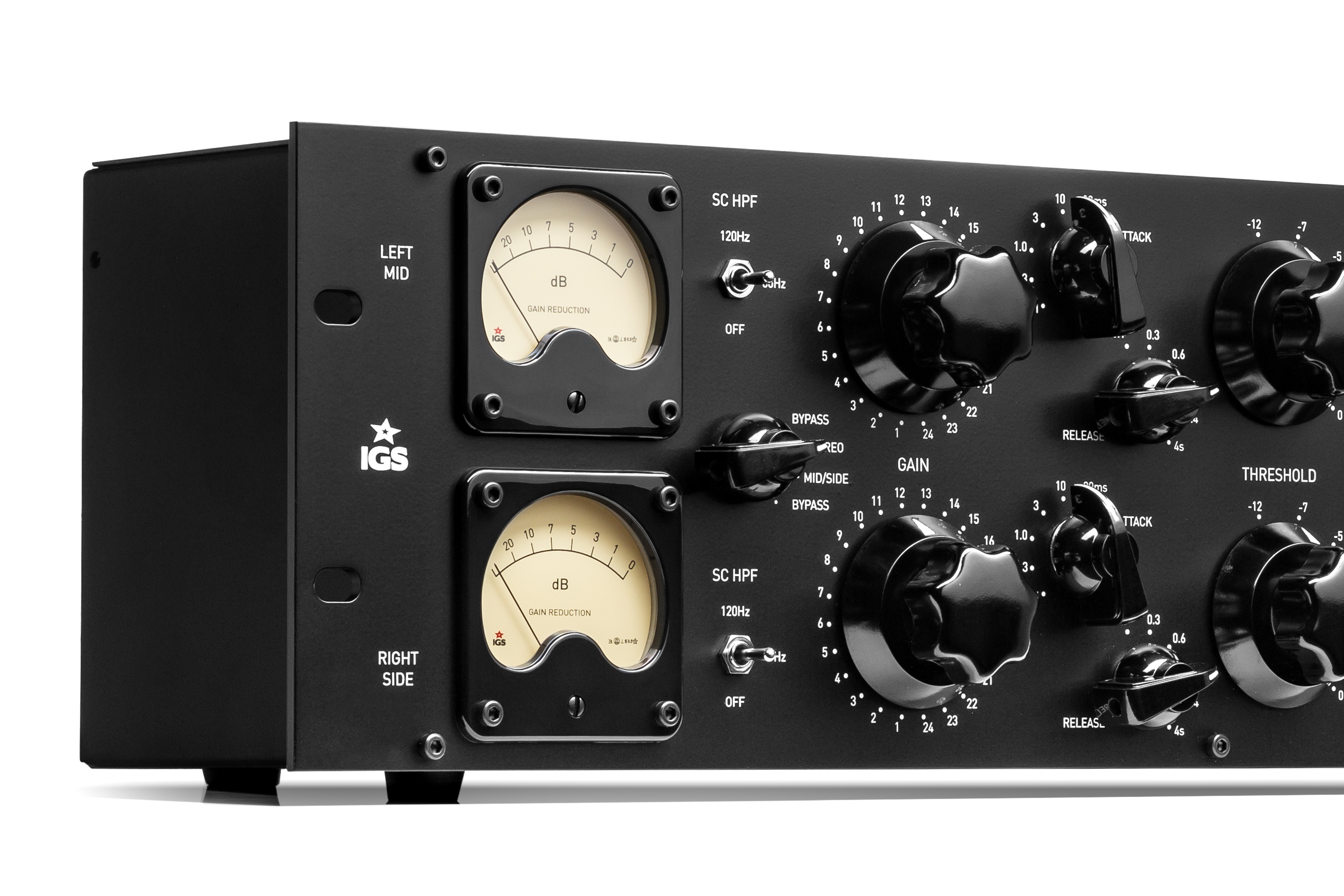

The Tubecore was designed as a studio mastering compressor. It is built using the 3U enclosure, which improves front panel clarity and makes it easier to replace tubes located at the back. The compressor allows you to work either in dual mono or mid/side mode (M/S). The Mode switch has two bypass positions – they both do the same, but we added the second one for your comfort and quick A/B comparing.

We have spent hundreds of hours designing the TUBECORE to make sure that's simple to use and versatile.

The tubes.

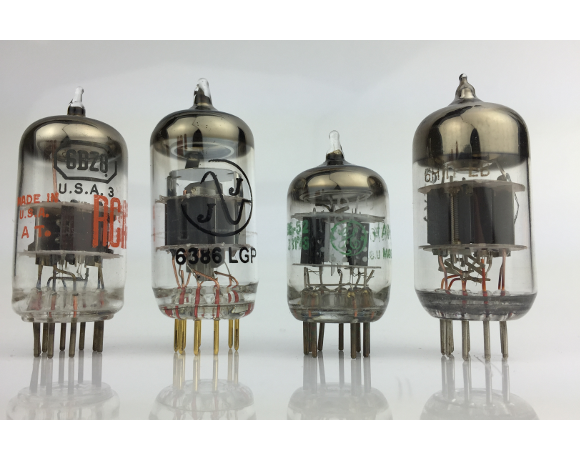

The design of the Tubecore is based on the possibility to replace the tubes. As a user, you can choose between a few types: 6N1P-EW (6N3P-EW) – standard set of tubes, “standard” IGS compression, 6BC8/6BZ8 – tight, transparent, punchy compression, 6386 – legendary compression, by famous twin triode, 5670 – deep and dark tube compression. The User's Manual describes in detail how to replace tubes, so it is quick and straightforward.

The user decides how the device should sound.

The quality.

Every single TUBECORE is hand made with high quality, matched components (1% metal film resistors, Wima caps). It is equipped with 6N1P-EW (6N3P-EW) NOS tubes and individually calibrated to give you the unique and unspoiled experience of one of the best vari-mu compressors in history. It is equipped with IGS Custom Made audio transformers.

TUBECORE uses 24 step Elma switches.
  1. Videos
  2. Gallery
  3. Download
  4. Specification
  1. Device type
    Vari Mu Compressor Yes
    Basic features
    All stepped manipulators 24 pole Elma switches
    MID/SIDE Processing OpAmp M-S encode/decode
    WET/DRY Mixer 0 - 100%, 4 dB step
    Sidechain HPF 120Hz, 60Hz, Off
    Input & Output
    Input Impedance (balanced) XLR, 10k Ohm, IGS Custom Transformers
    Output Impedance (balanced) XLR, 600 Ohm, IGS Custom Transformers
    Levels
    Operating Level +4dBu
    Max input level +22 dBu
    Max output level +22 dBu
    Dynamic Range >107 dBA (@ 1kHz, +24 dBu)
    Max. gain +35dB
    Max Gain Reduction 20 dB
    Time constants
    Attack: 0.1 - 30 ms
    Release: 0.1 - 4s
    Bandwidth
    Frequency response 20Hz to 20kHz; +/- 0.2dB
    Distortion (@ 20 Hz - 20 kHz)
    Signal to Noise Ratio 87 dBA
    THD 0.12 %
    THD+N 0.15 %
    IMD (SMPTE) 0.32%
    Crosstalk 82 dB
    Power
    Voltage 115/230V AC, 50-60Hz
    Power consumption 44 Wats
    Power supply External
    Packing box
    Dimensions 70x50x30 cm
    Shipping weight 9kg
    Others
    Tube set Standard: 6N1P-EW or 6N3P-EW, Optional: 6BC8, 5670, 6386
  2. Files
    TC3U manual v1 pdf.pdf
    TC3U_Recall_Sheet.pdf
